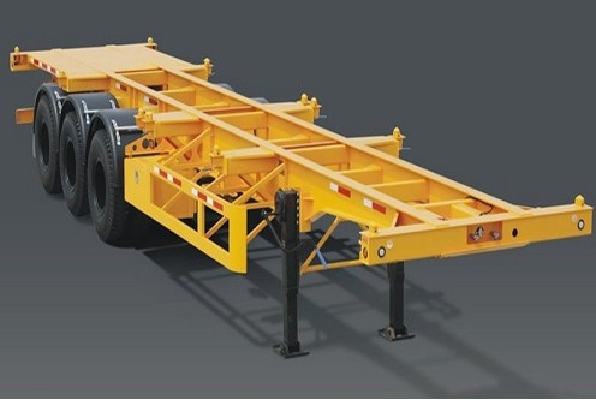

Skeletal container semitrailer

Skeletal container semitrailer

  • Min.Order Quantity: 1000 Sets
  • Supply Ability: 1000 Sets per Month
  • Port: Chinese port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-04-10
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1000
  • Place of Origin:  NO. 66 HUALONG ROAD, JINAN, SHANDONG, CHINA
  • Brand Name:  Safewell
  • Model Number:  87163900
  • Weight: 1000.000 kg

Product Description
STRUCTURAL WEIGHT RATTING (estimated):
Tare Weight: 9, 200kg (approximation)
Payload: 60, 000kg
G. V. W. R.: 69, 200kg (approximation)
King Pin Weight: 23, 330kg (approximation)
Axle Weight: 45, 870 kg (approximation)
RUNNING GEAR & FRAME:
Suspension: Undermount tri-axle suspension with equalizers, 7-leaf spring, 39, 000kg capacity.
Axle: FUWA 150× 150 square Axle. 13 ton capacity/set.
Wheel: 8.25-22.5, 10 holes Steel Disc, 12 PCS, made in China.
Tire: 11.00R22.5 16 Ply Rating, 12 PCS, made in China.
King Pin: 3.5", bolted type; Model: JOST KZ1412.
FRAME:
Brake: Dual line pneumatic brake system. WABCO brake valve.
Without ABS.
Brake chamber: Type 30/30 spring brake chamber on the 1st axle,
type 30 brake chamber on the 2ND and 3rd axles, made in China.

ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light: Front marker lamp: White
Side marker lamp: Amber
Rear lamp: Red
Turn signal lamp: Amber
LANDING LEG:
Leg: Two speed manual operation type with sand shoe; Right handle.
Model: TSU 25T
Rated Capacity: Static: 80ton. Lifting: 25ton.
PAINTING & MARKING:
Color: Comply with the customer's request.
Marking: Comply with Chinese standards.
ELSE:
Side guard: One set (L/R)
Tool box: 2 PCS. (see drawing, both sides, 1500mm length)
Spare tire carriers: 2 PCS.
The maximum load of this semi-trailer is 60, 000kg.
Please provide the tractor specification before order.
All the details are not mentioned above should comply with Chinese standards.

  • Size:  1000
  • Place of Origin:  NO. 66 HUALONG ROAD, JINAN, SHANDONG, CHINA
  • Brand Name:  Safewell
  • Model Number:  87163900
  • Weight: 1000.000 kg
